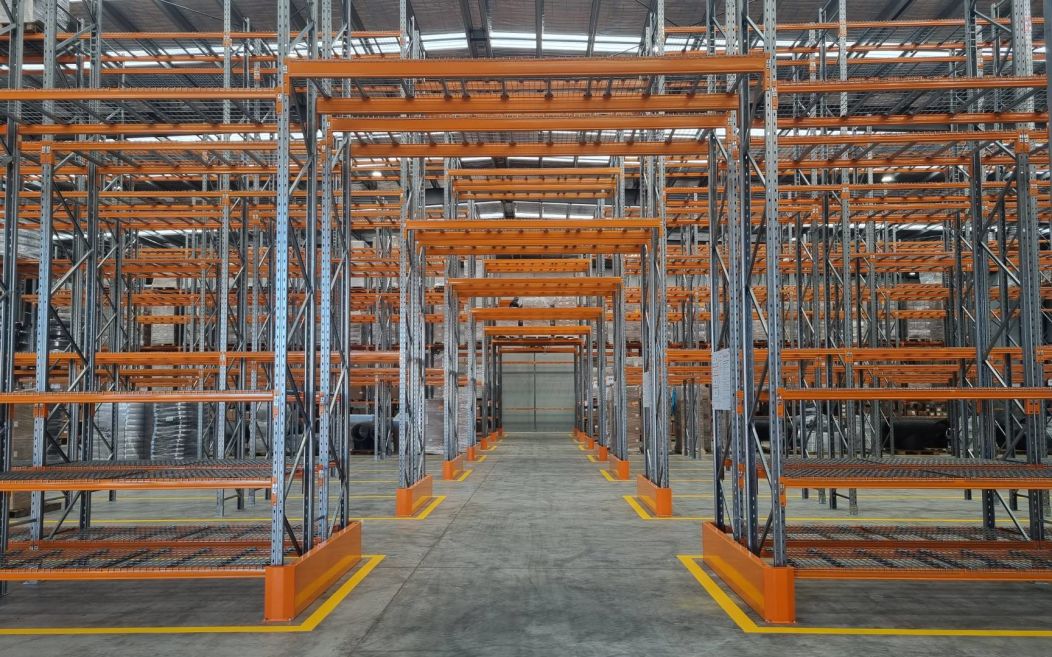

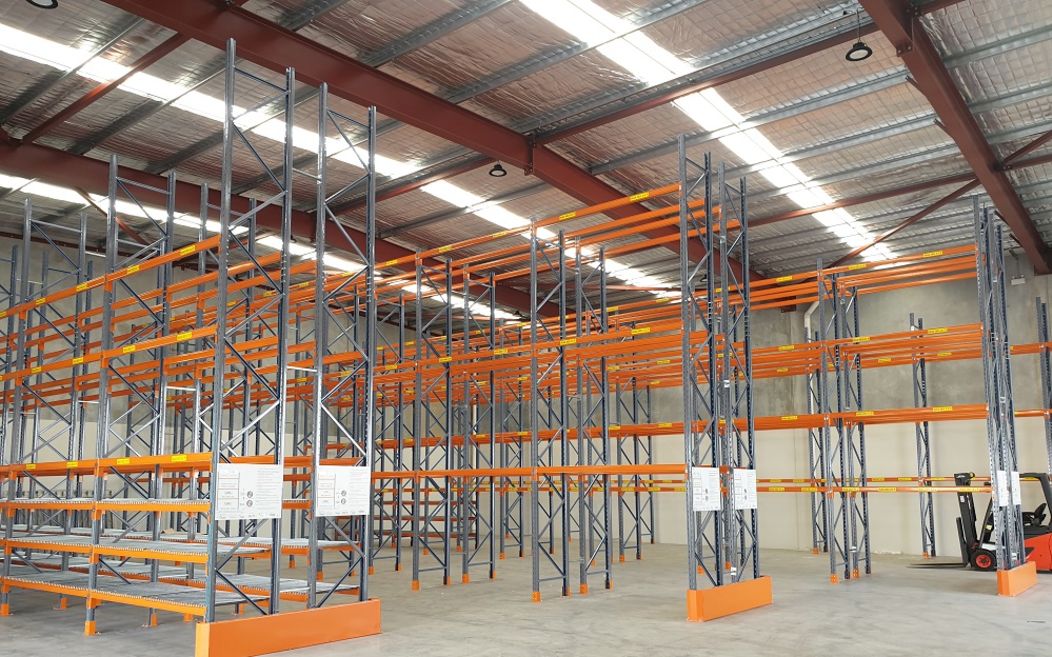

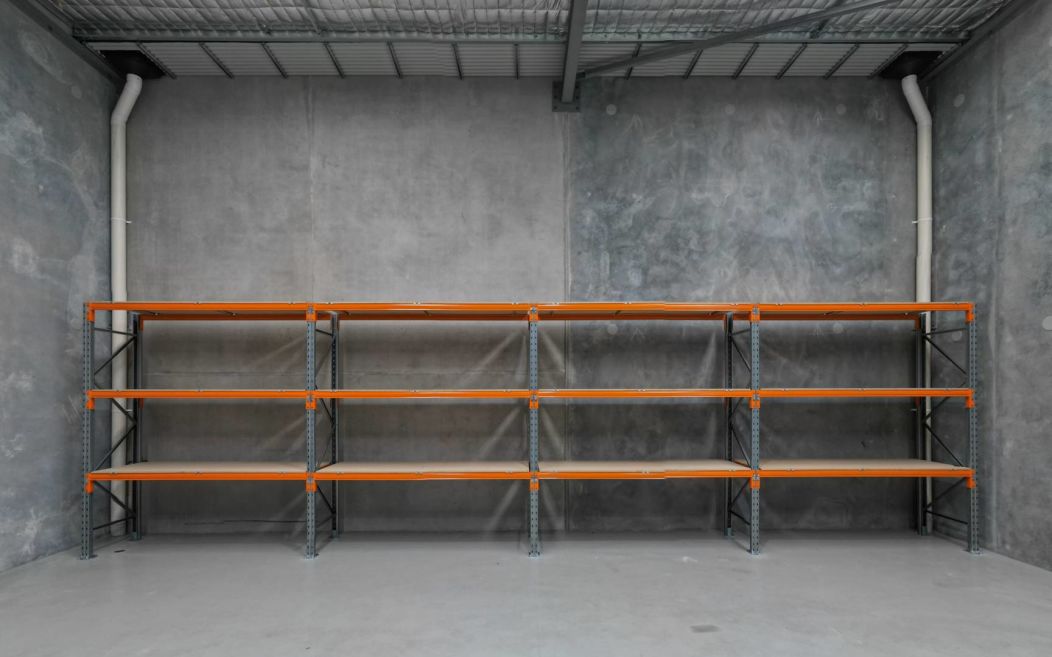

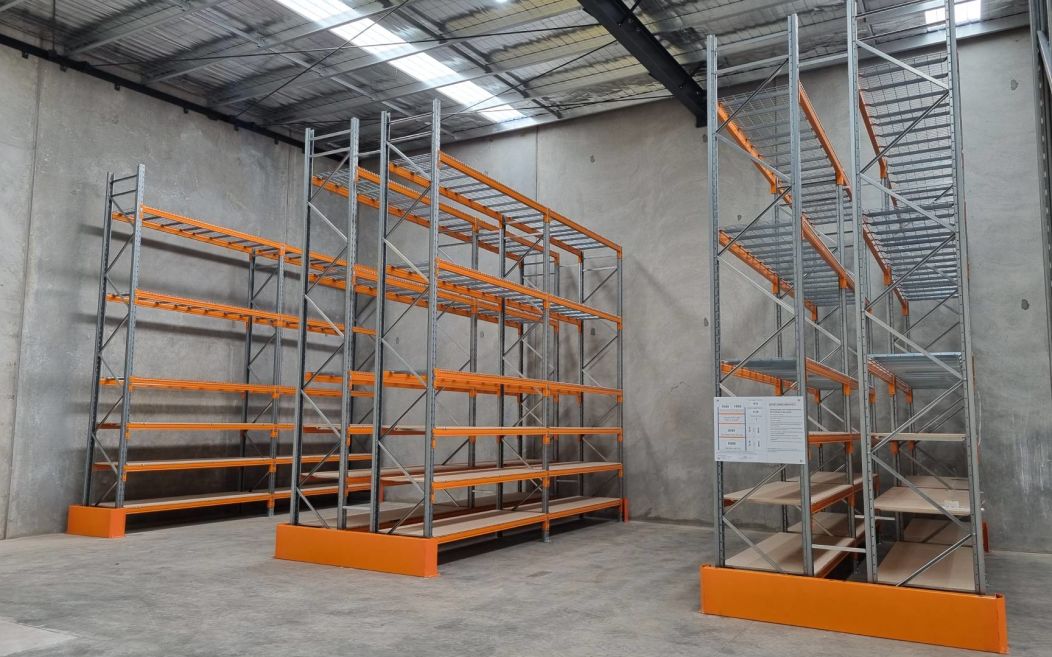

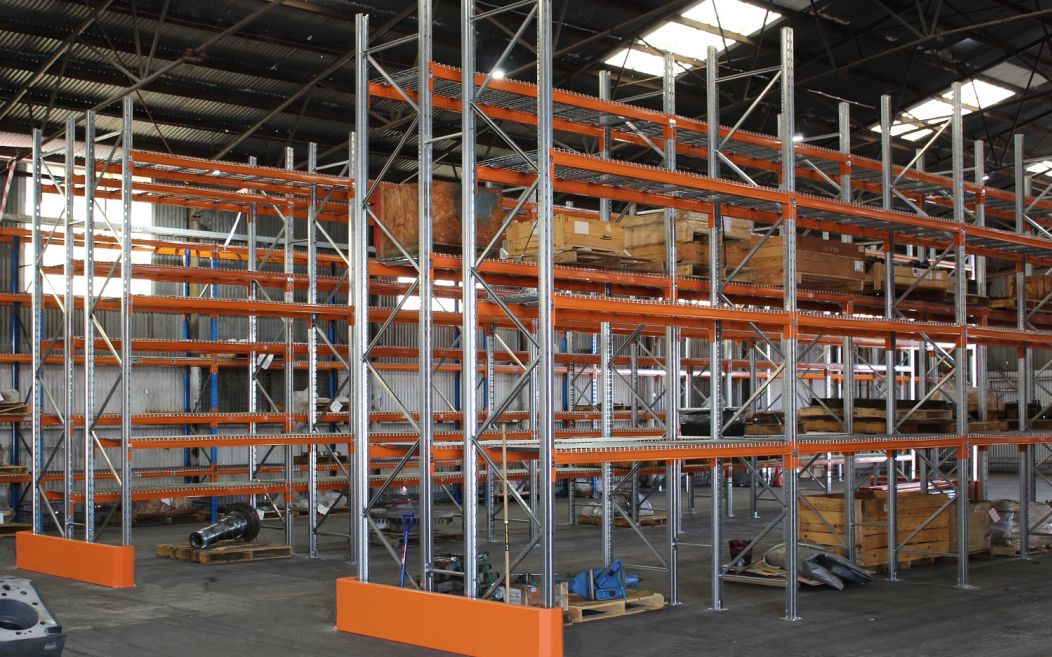

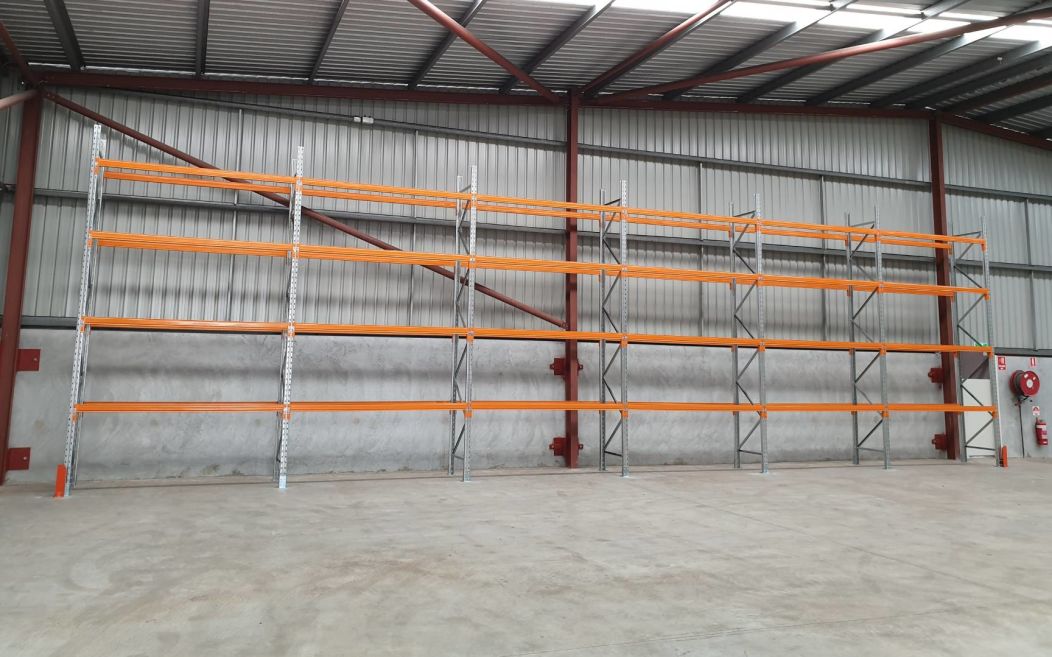

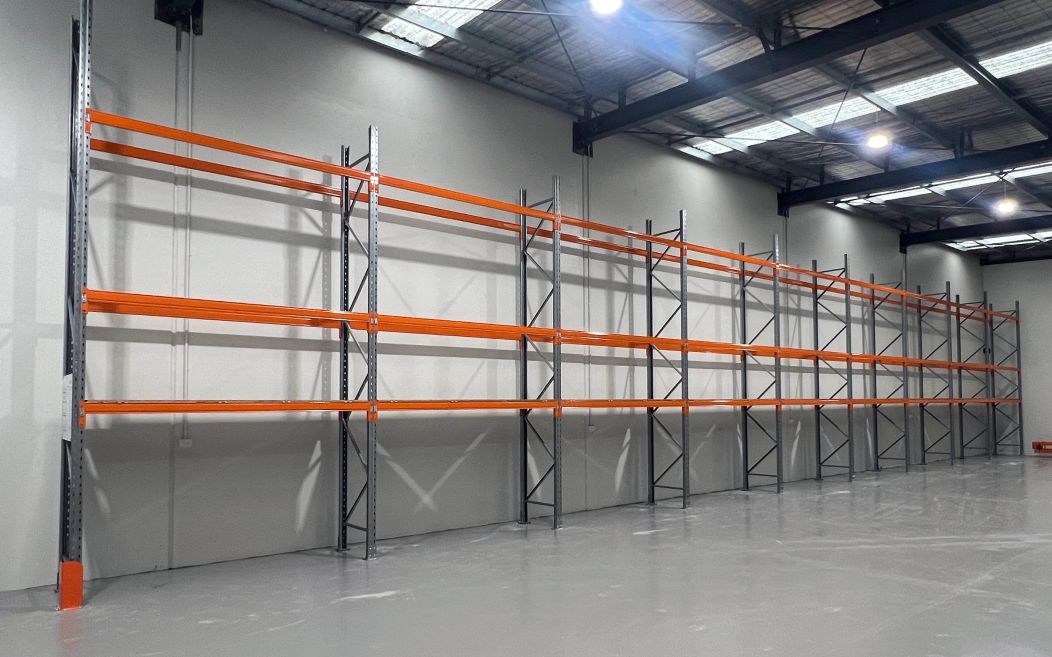

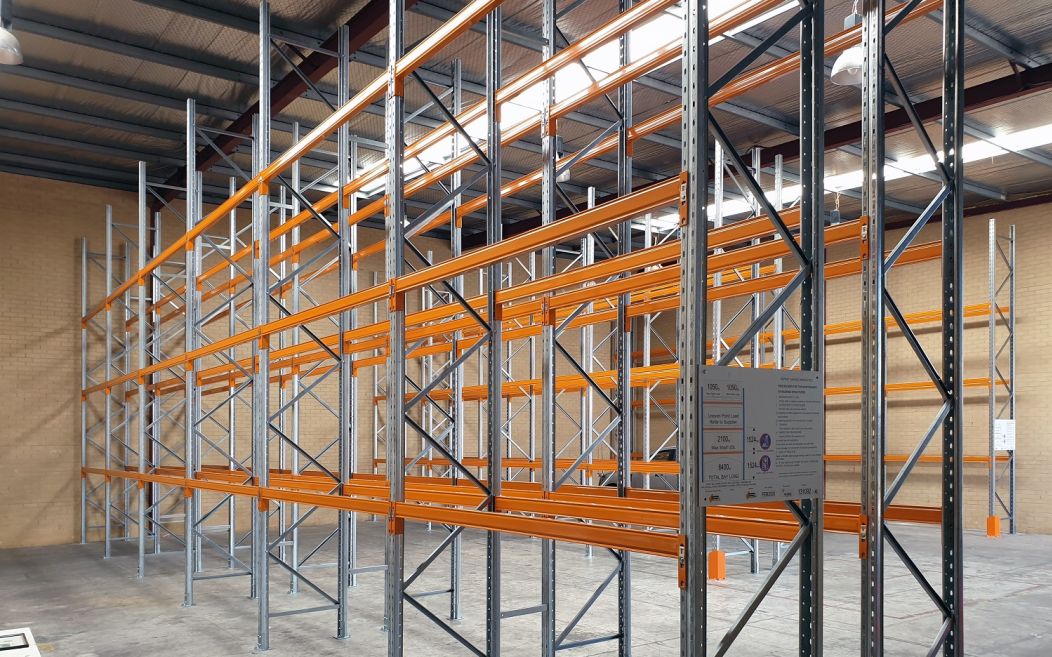

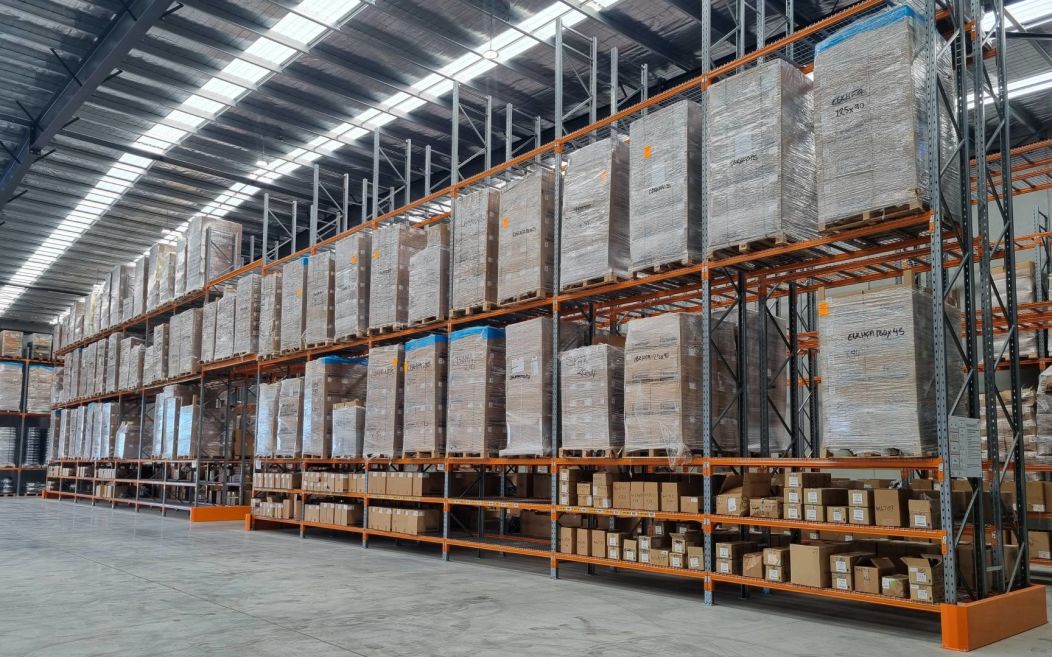

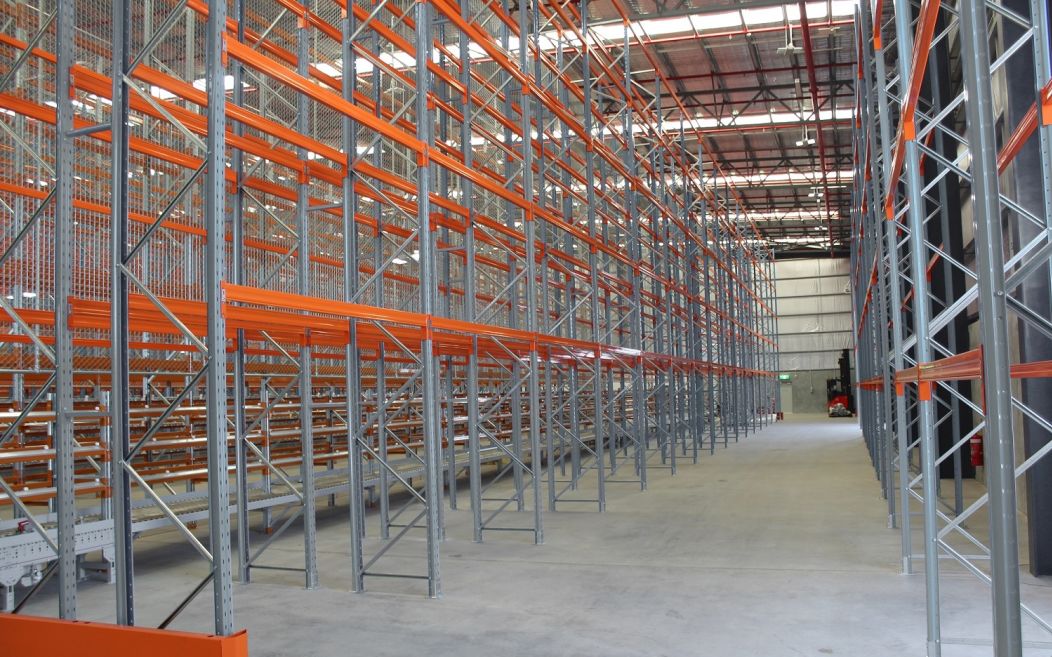

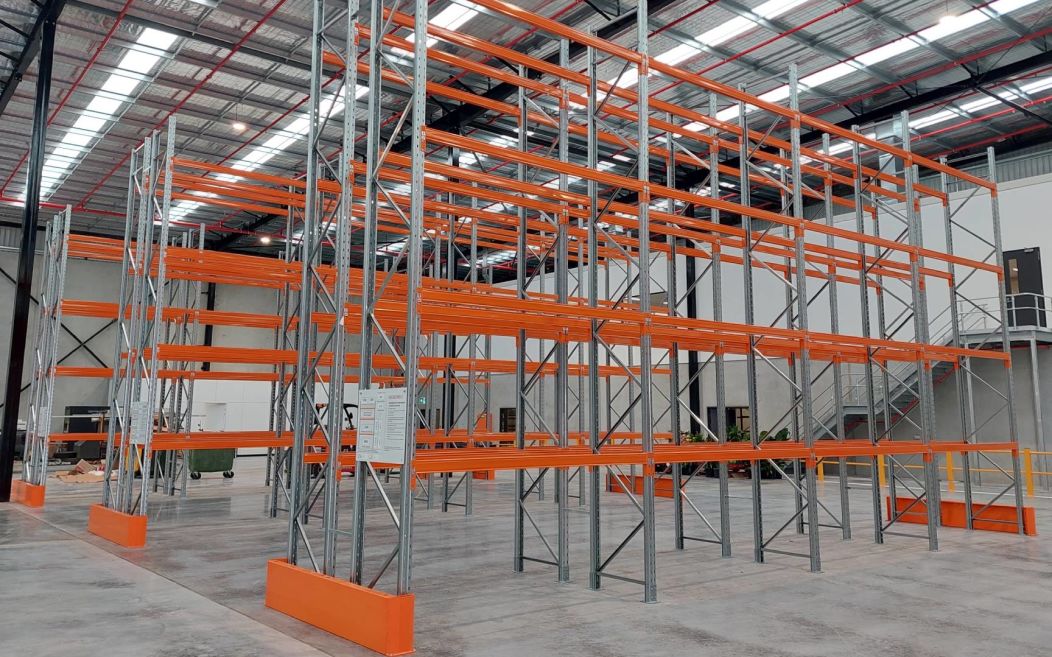

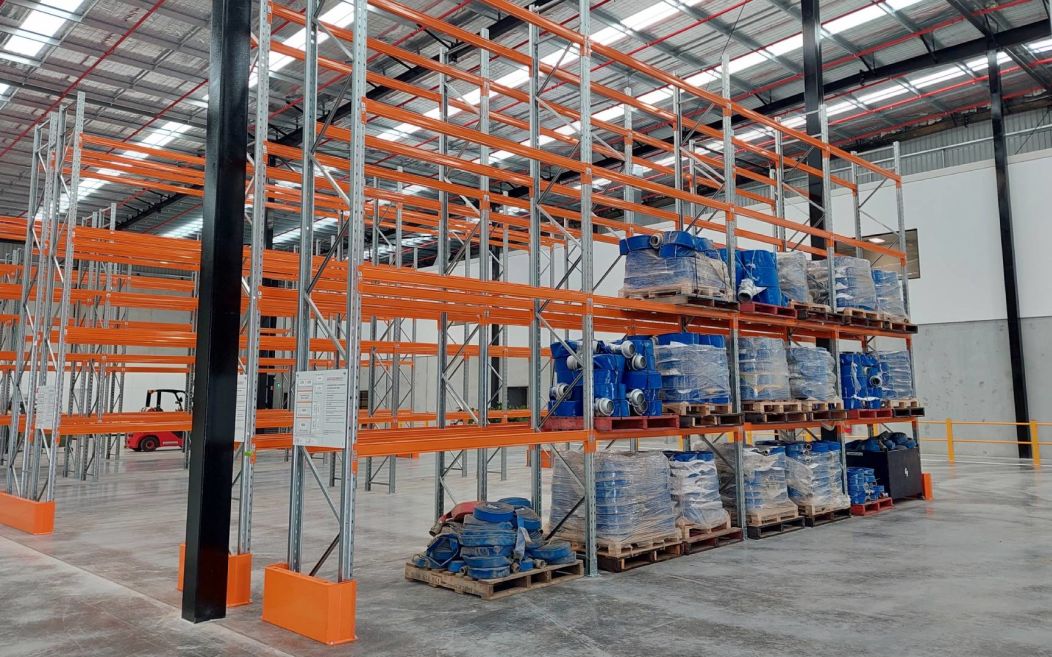

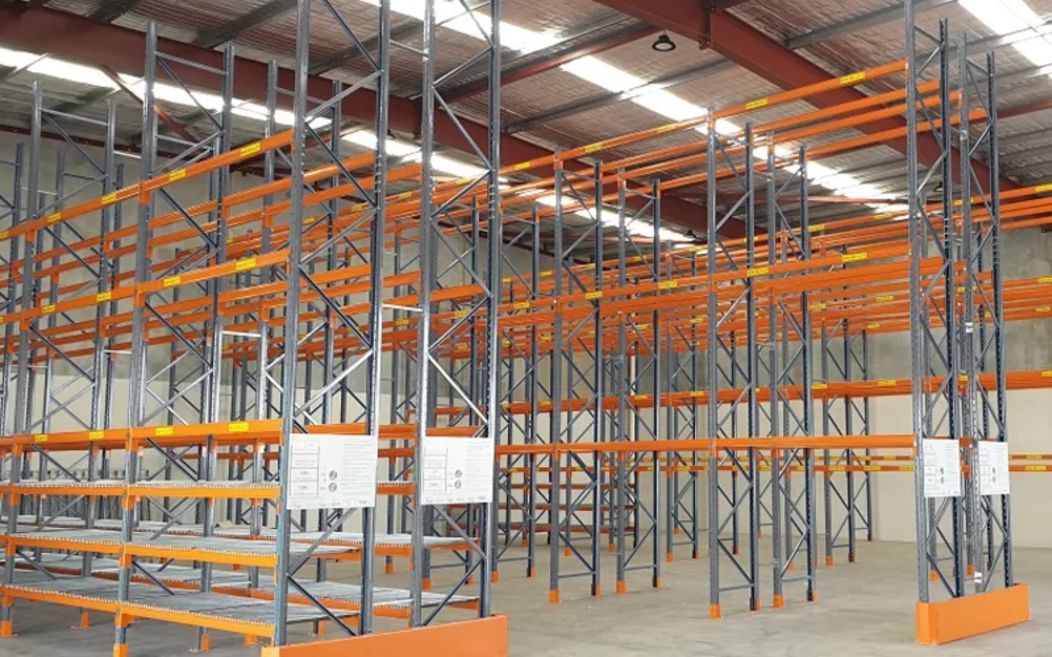

APEX Selective Pallet Racking
Customers who viewed this item also viewed
Product Details
Key Features
- Durable Construction: Manufactured from high-strength steel with a pre-galvanised finish for long-term corrosion resistance and a sleek silver appearance.
- High Load Capacity: Multiple upright frame profiles are available to suit your required load ratings.
- Powder Coated Beams: Tough orange box and open beams are powder-coated for enhanced impact resistance and structural reliability.
- Easy Access: Selective racking design ensures every pallet is immediately accessible without shifting others, improving picking times and workflow.
- Versatile Sizing: Standard frame heights and beam lengths are available from stock. Custom sizes can be made to order to suit your specific layout.
- Compatible Accessories: A full range of racking components and safety accessories is available to complete your system.
- Adjustable Configuration: Beams are height adjustable in 76.2mm increments, allowing you to optimise for different pallet sizes and weights.
Applications
- Warehouses & Distribution Centres
- Retail Stockrooms
- Manufacturing Plants
- Cold & Freezer Storage Facilities
- Automotive and Industrial Supply Stores
Why Choose APEX Racking?
APEX has built a strong reputation for quality, reliability, and compliance with Australian standards. Whether you’re building a small storage bay or a large-scale warehouse fit-out, APEX selective pallet racking offers the durability and performance to keep your operation running efficiently and safely.
Additional Information

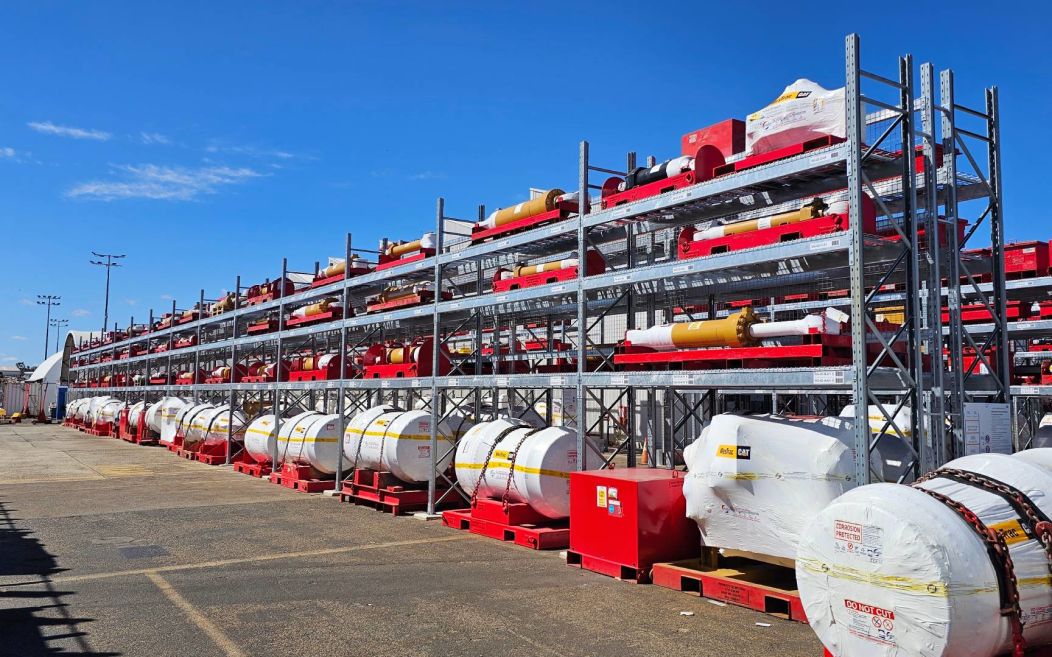

Outdoor Applications
APEX Selective Pallet Racking is a durable and compliant solution for outdoor storage when designed and installed correctly. Whether you’re storing materials in a yard, under a shelter, or in an open-air environment, our racking is engineered to meet the demands of outdoor use.
Built for the Outdoors
- Pre-Galvanised Steel Frames: All APEX frames feature a corrosion-resistant finish, ideal for exposed environments and harsh weather conditions.
- Hot-Dipped Galvanised Beams, Footplates & accessories: Designed for maximum corrosion resistance, ideal for outdoor or high-moisture environments
- Wind Rated: Every outdoor racking setup includes wind load calculations tailored to your specific location and surroundings. These ratings ensure structural integrity under varying wind conditions across different regions.
- Seismic Hazard Factor: In line with AS 4084 2023 requirements, the seismic hazard factor must be included in all safe working load calculations. This is especially important for outdoor installations in regions with higher seismic activity.
Installation and Safety
- Anchoring and Bracing: Outdoor racking must be securely anchored to a suitable concrete slab and may require additional bracing to resist wind and seismic forces.
- Ground Levels: Sloped surfaces are often more prominent outdoors to allow for water drainage, so each site should be carefully assessed to ensure the racking can be properly anchored and remains structurally stable on uneven ground.
- Stable Ground Surface: Racking must be installed on a solid, level concrete slab designed to support the load and ensure long-term structural stability. In some cases, a concrete slab or strip footings are required.
The following surfaces are not suitable;
- Unreinforced concrete – lacks the structural strength to support anchored racking under load
- Asphalt or bitumen – too soft and flexible, especially under heavy point loads
- Compacted gravel or dirt – unstable and unable to hold anchor bolts securely
- Pavers or tiles – not designed to bear concentrated loads or provide reliable anchoring
- Uneven or heavily sloped surfaces – create instability and make correct installation difficult
Cracked or damaged concrete – may indicate compromised structural integrity and must be assessed before use
Apex Pallet Racking has been tested to and fully complies with latest Australian racking code AS 4084-2023
Apex Pallet Racking has also been manufactured to meet the following standards:
- FEM 10.2.02 European code of practice for the design of static steel pallet racks
- AS1250-1981 SAA Steel structures code
- AS1538-1988 SAA Cold-form steel structures code
- SEMA-1980 (UK) Storage equipment manufacturers’ association of practice for the design and use of static pallet racking
- RMI-1985 (USA) Rack manufacturers’ institute specification of the design, testing and utilization of industrial steel racks
- AS 4084-2023 Steel racking standards and codes that have since been revised or superseded.
Apex Rack selective pallet racking system uses the first in – first out principle to retrieve pallets.

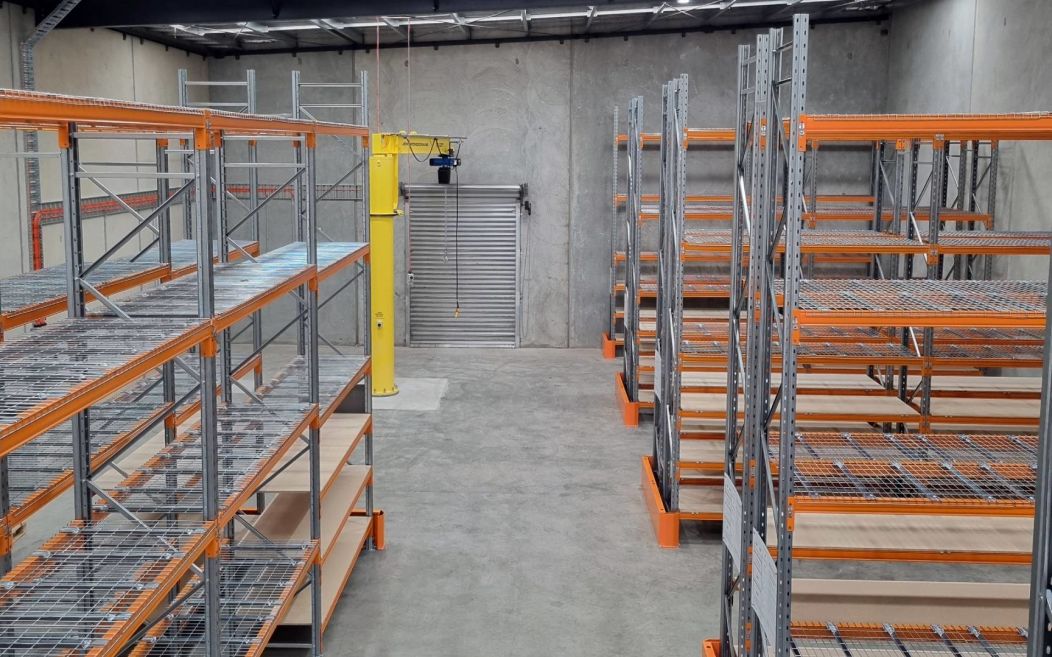

Numerous racking accessories such as mesh decks, boards with board supports, rack protection etc. are available. Ask us in store today.
Frame Options
Choose from multiple frame grades to match your specific load capacity needs. All posts and frames feature a durable pre-galvanised silver finish for long-lasting protection against corrosion. Standard frame heights are readily available from stock, with custom sizes also available on request to suit your unique warehouse requirements.
| Frame Height | Frame Depth | Apex Section |
| 914mm | 610 / 838 / 1219mm | 90-15 |
| 1829mm | 610 / 838 / 1219mm | 90-15 |
| 2438mm | 610 / 838 / 1219mm | 90-15 |
| 3048mm | 610 / 838 / 1219mm | 90-15 |
| 3658mm | 610 / 838 / 1219mm | 90-15 |
| 4267mm | 610 / 838 / 1219mm | 90-15 / 90-20 |
| 4877mm | 610 / 838 / 1219mm | 90-15 / 90-20 |
| 6096mm | 610 / 838 / 1219mm | 90-15 / 90-20 /90-25 |
| 7315mm | 610 / 838 / 1219mm | 90-20 / 90-25 |
Beam Options
POWDER COATED BEAMS
APEX powder coated orange box and open beams are designed to withstand a higher level of impact and retain their shape better than some other types of beam sections on the market.
The below are our standard sizes available off the floor. Please note that special sizes can be made and ordered upon request.
| Beam Length | Box Section | Connector |
| 1372mmL | 50 x 45mm (open)
80 x 40mm |
3pin
3pin |
| 1524mmL | 80 x 40mm | 3pin |
| 1829mmL | 80 x 40mm | 3pin |
| 2134mmL | 80 x 40mm | 3pin |
| 2438mmL | 80 x 40mm | 3pin |
| 2591mmL | 50 x 45mm (open)
80 x 40mm 100 x 50mm 120 x 50mm 140 x 50mm |
3pin
3pin 3pin 4pin 4pin |
| 2743mmL | 50 x 45mm (open)
80 x 40mm 100 x 50mm 120 x 50mm 140 x 50mm |
3pin
3pin 3pin 4pin 4pin |
| 3048mmL | 120 x 50mm | 4pin |
| 3353mmL | 120 x 50mm | 4pin |
| 3658mmL | 140 x 50mm | 4pin |
| 3810mmL | 140 x 50mm | 4pin |
| 4267mmL | 140 x 50mm | 4pin |
| 4877mmL | 140 x 50mm | 4pin |
HOT DIPPED GALVANISED (HDG) BEAMS
APEX hot-dipped galvanised beams are made from a rectangular hollow section (RHS) and are typically used for outdoor applications. The hot-dipped galvanised surface treatment makes them more resistant to rusting.
| Beam Length | RHS Section | Connector |
| 1372mmL | 75 x 50mm | 2 pin |
| 2591mmL | 75 x 50mm
100 x 50mm 125 x 50mm |
3 pin
3 pin 4 pin |
| 2743mmL | 75 x 50mm
100 x 50mm 125 x 50mm |
3 pin
3 pin 4 pin |
Selective pallet racking is great for easy access to products, especially when you’re dealing with high turnover. It’s a top pick for distribution outlets, retail storage and bulk storage.
As a pallet racking system, the most common type is roll-formed pallet racking, which has a simple clip-in design. You can easily adjust the shelves to fit different pallet rack sizes – making it a versatile option for industrial warehouse racking.
