Apex vertical racking storage system is designed for long products that can stand vertically on its end, minimising the need for additional floor space.

Some examples of products that can be stored;

  • PVC Conduit
  • Timber Trims
  • Steel
  • Aluminium
  • Mouldings
  • Electrical Supplies etc.

With many different configurations available, enquire within today to discuss your requirements.

Lifetime Structural Warranty
Lifetime Structural Warranty

Australian Designed
Australian Designed

Engineering Certified
Engineering Certified

Easy to assemble and/or Easy to install
Easy to assemble and/or Easy to install


Apex vertical rack system is perfectly designed for long products that can stand vertically on its end. Minimizing the need for floor space.

Some examples of products that can be stored;

  • PVC Conduit
  • Timber Trims
  • Steel
  • Aluminium
  • Mouldings
  • Electrical Supplies etc.

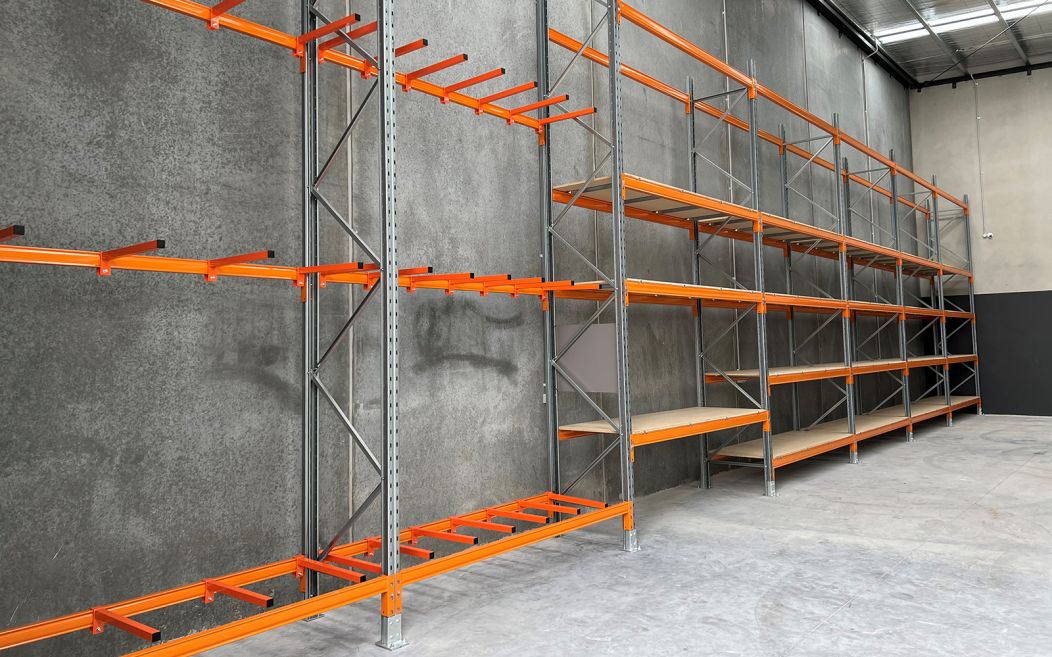

Available in both a single and double-sided configurations. Single-sided racks works perfectly along a wall, whereas the double-sided is best suited out in the open warehouse space.

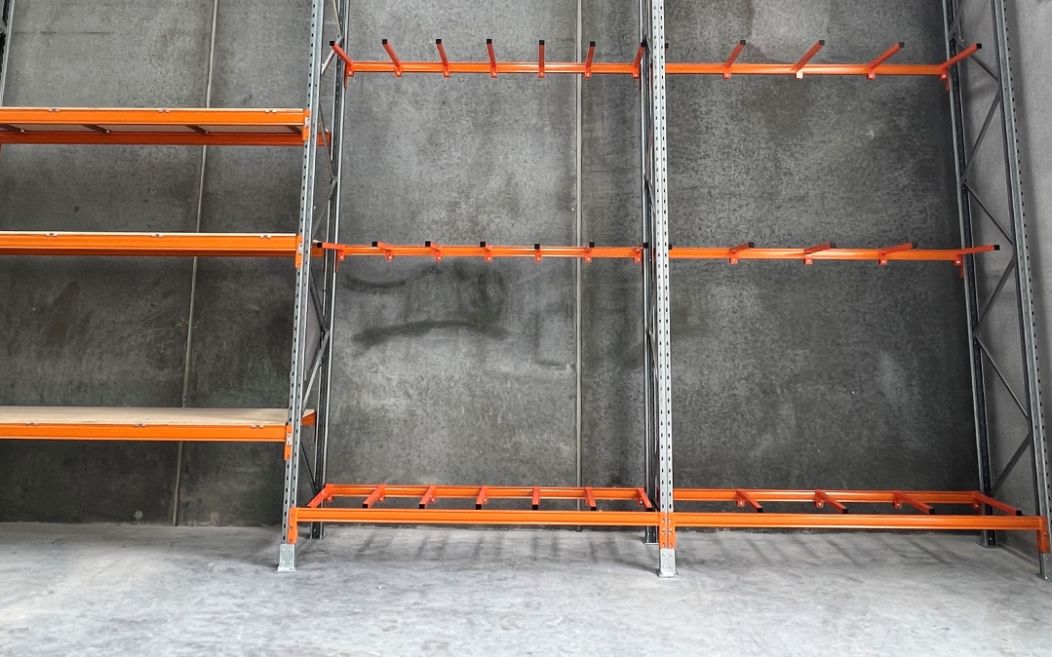

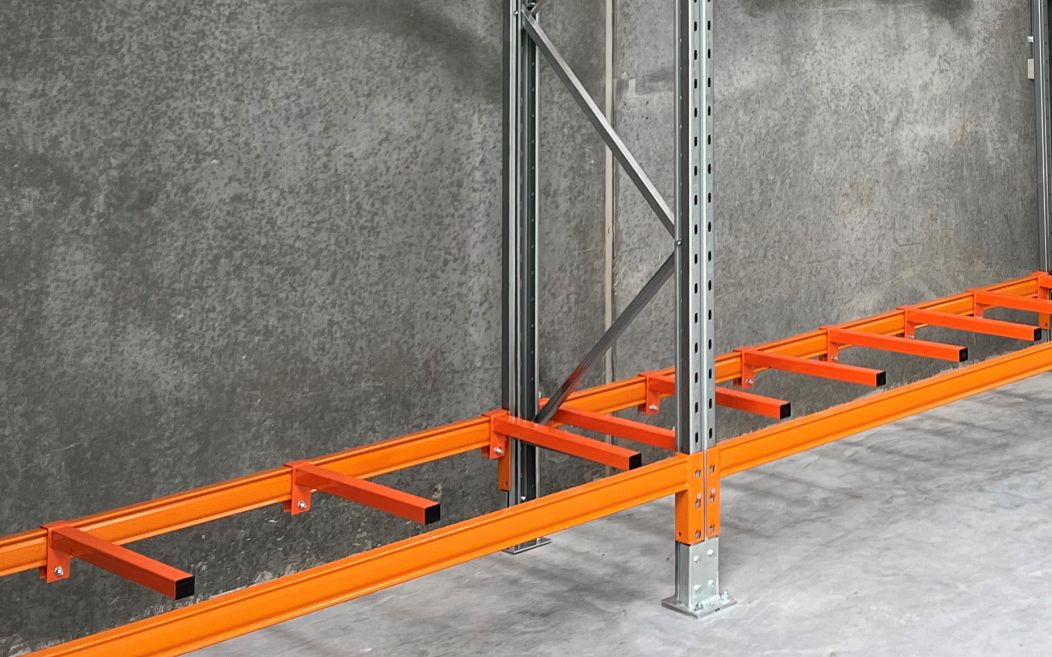

Each bay consists of multiple back beams that are fitted with vertical divider arms to create sections. Front beams are positioned at the bottom and top to prevent the materials being stored from sliding out or falling forward.


Check out our range vertical racking sizes below.
Contact us today and one of our friendly staff members will work with you to find the best setup for your space and product range.


Heights Beam Length
(internal measurement)
Single Sided Double Sided

Freestanding 100mm back-to-back

Double Sided

with 430mm row spacer

2438mm 914mm 610mm 1320mm (610mm) 1650mm (610mm)
3048mm 1372mm 838mm 1776mm (838mm) 2106mm (838mm)
3658mm 1524mm 1219mm 2538mm (1219mm) 2868mm (1219mm)
4267mm 1829mm
4877mm 2134mm
6096mm 2438mm


Suitable Accessories;

  • Hose Hangers – 700mm long suitable for taking loads up to 60kgs UDL each. Only suits 100x50mm and 120x50mm beams

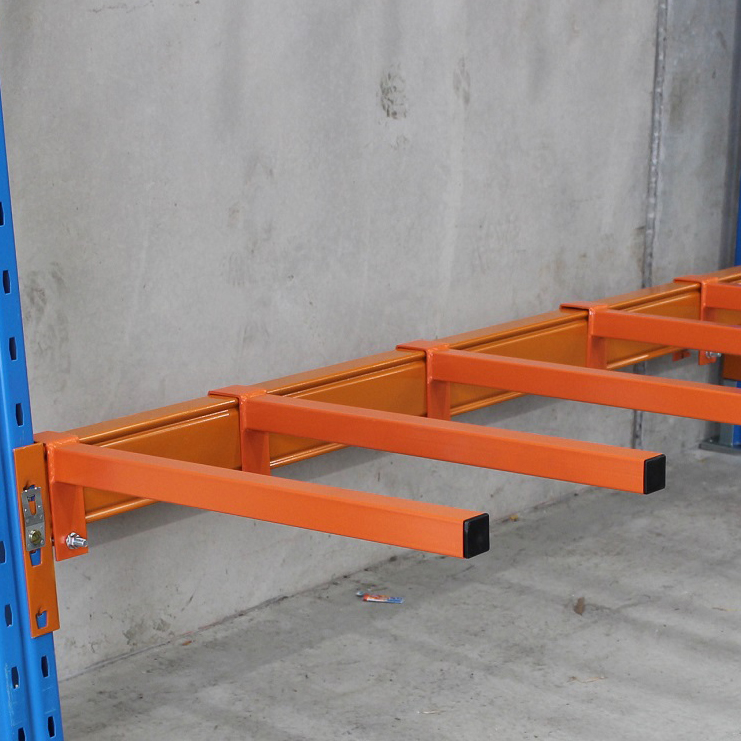

  • Vertical Divider Arms – 600mm long dividers that are non-load bearing. Available to suit either 80x40mm or 100x50mm beams

Additional Information

Global will provide full load capacities based on your desired configuration, including total bay capacity and maximum loading capacity within each arm section


  • Racking must be installed as per 4084-2012
  • Apex heavy duty footplate must be used as a minimum requirement
  • All footplates to be anchored to the floor using M10x70mm screw anchors or M12x100mm stud anchors.
  • Maximum 500kg between each divider arm section
  • All divider arm centers to be spaced no greater than 700mm apart
  • Vertical divider arms must be clamped to beams with 1x M10 nut and bolt
  • Minimum requirements for back beams – contact your Global rep for more information
  • Top beams must be inline with the top horizontals brace of the frame
