Post Protection
Additional Information

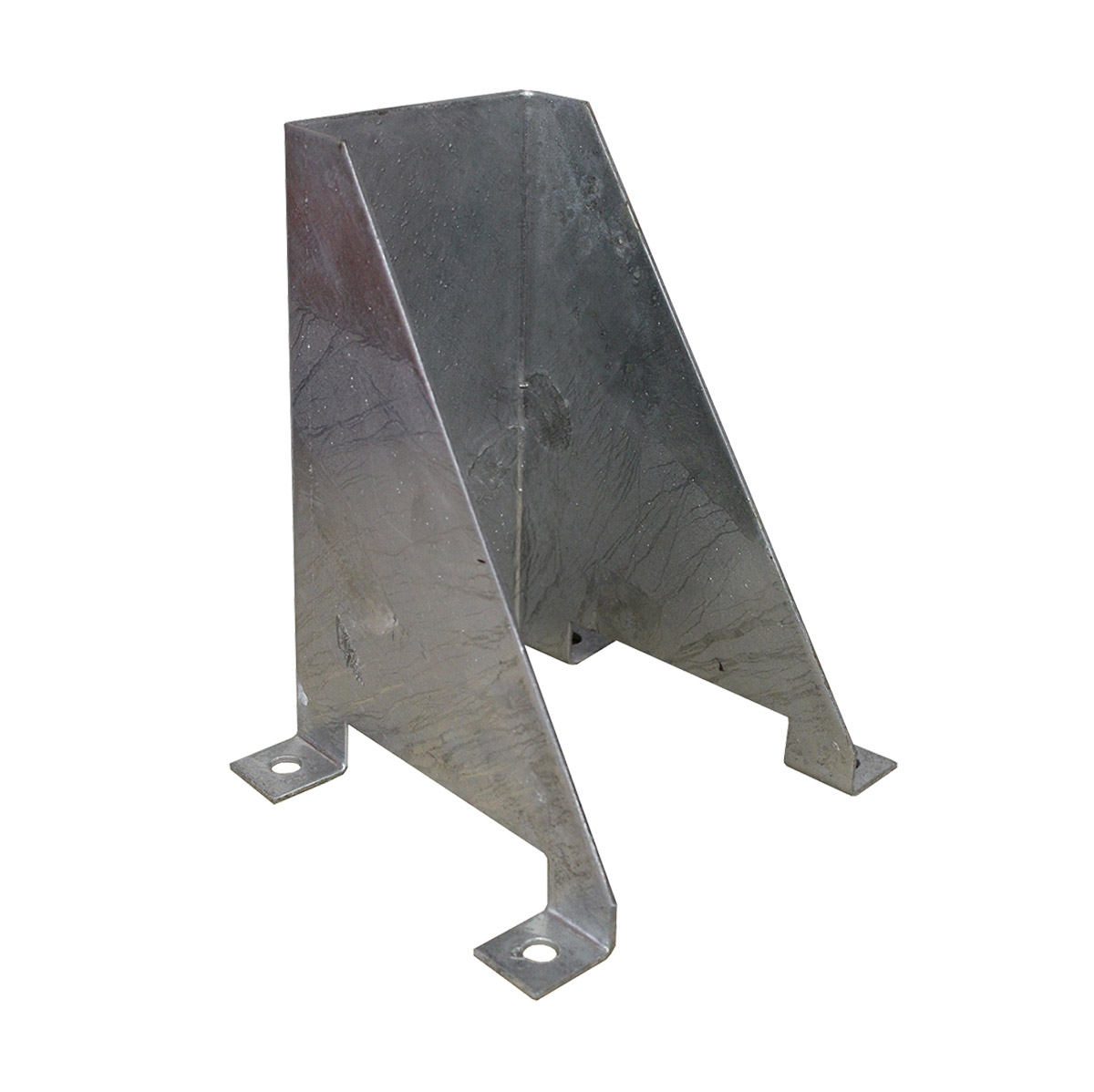

Column Guards
The Global column guard is designed to provide additional protection for you columns to help prevent fork strike.
The U-shaped type column guards are designed to go around the columns in your aisles. It is recommended that if using column guards in the aisles that a minimum 2743mm internal width beam is used to allow enough room for pallet entry below 400mm.
Available in 2 finishes – Hot dipped galvanised (RH0272) and powder coated orange (RH0269)
Corner Guards
The Global Corner guard is designed to meet your minimum cross aisle and gang way safety requirements under the AS4084:2023 standard.
Corner guards are required at the meeting points of all cross aisles and gangways (usually this means two per end of a pallet rack aisle unless that pallet racking aisle is against a wall).
Global offers two finishes; Standard powder coated orange 400mm high (RG0273) and hot dipped galvanised 400mm high (RGGH251)
Installation of all rack protection must be 60mm minimum clearance from the column. This is to ensure that it is compliant to AS4084.1:2023
|
Apex Rack Protection |
||||
| CODE | DESCRIPTION | No. OF ANCHOR POINTS | MINIMUM ANCHOR QTY REQUIRED | MINIMUM ANCHOR EMBEDMENT DEPTH |
| RH0269 | Column Guard 400mm high U-shaped | 4 | 4 | 65mm |
| RH0273 | Corner Guard 400mm high L-shaped | 4 | 4 | 65mm |
| RGGH250 | HDG Column Guard 400mm high U-shaped | 4 | 4 | 65mm |
| RGGH251 | HDG Corner Guard 400mm high L-shaped | 4 | 4 | 65mm |
Contact your local Global warehouse to discuss the best options for your rack protection.
