End Row Wrap Barriers
Product Details
Overall Dimensions:
1090mmL x 225mmD x 400mmH (RH0291 & RGGH260)
1470mmL x 225mmD x 400mmH (RH0292 & RGGH262)
2360mmL x 225mmD x 400mmH (RH0290 & RGGH265)
2530mmL x 225mmD x 400mmH (RH0288)
Internal Length:
960mmL (RH0291 & RGGH260)
1340mmL (RH0292 & RGGH262)
2230mmL (RH0290 & RGGH265)
2400mmL (RH0288)
Uses:
1090mmL compatible with single entry 838mm frames

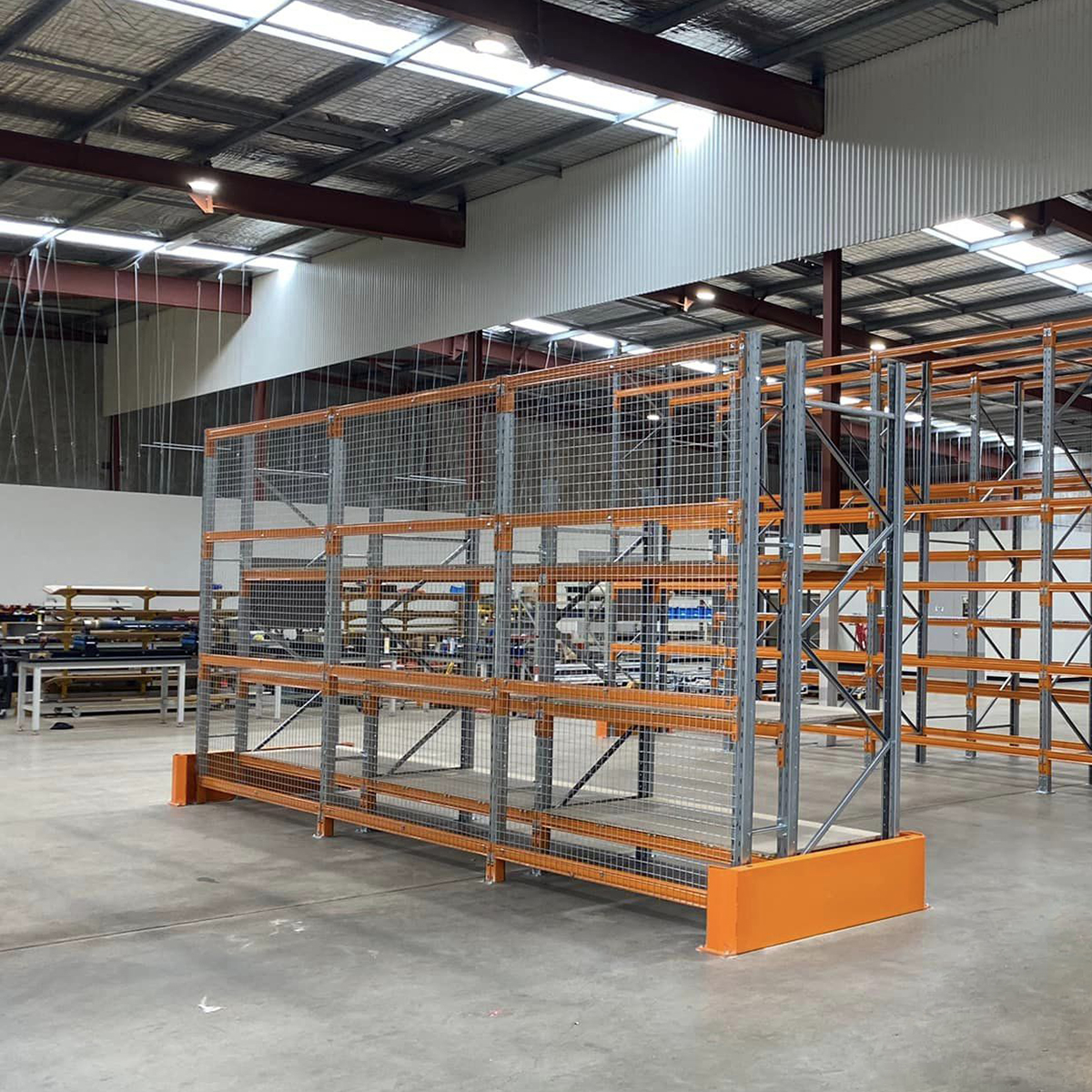

1470mmL compatible with single entry 1219mm frames or 838mm frame with a 250mm stand-off mesh backing

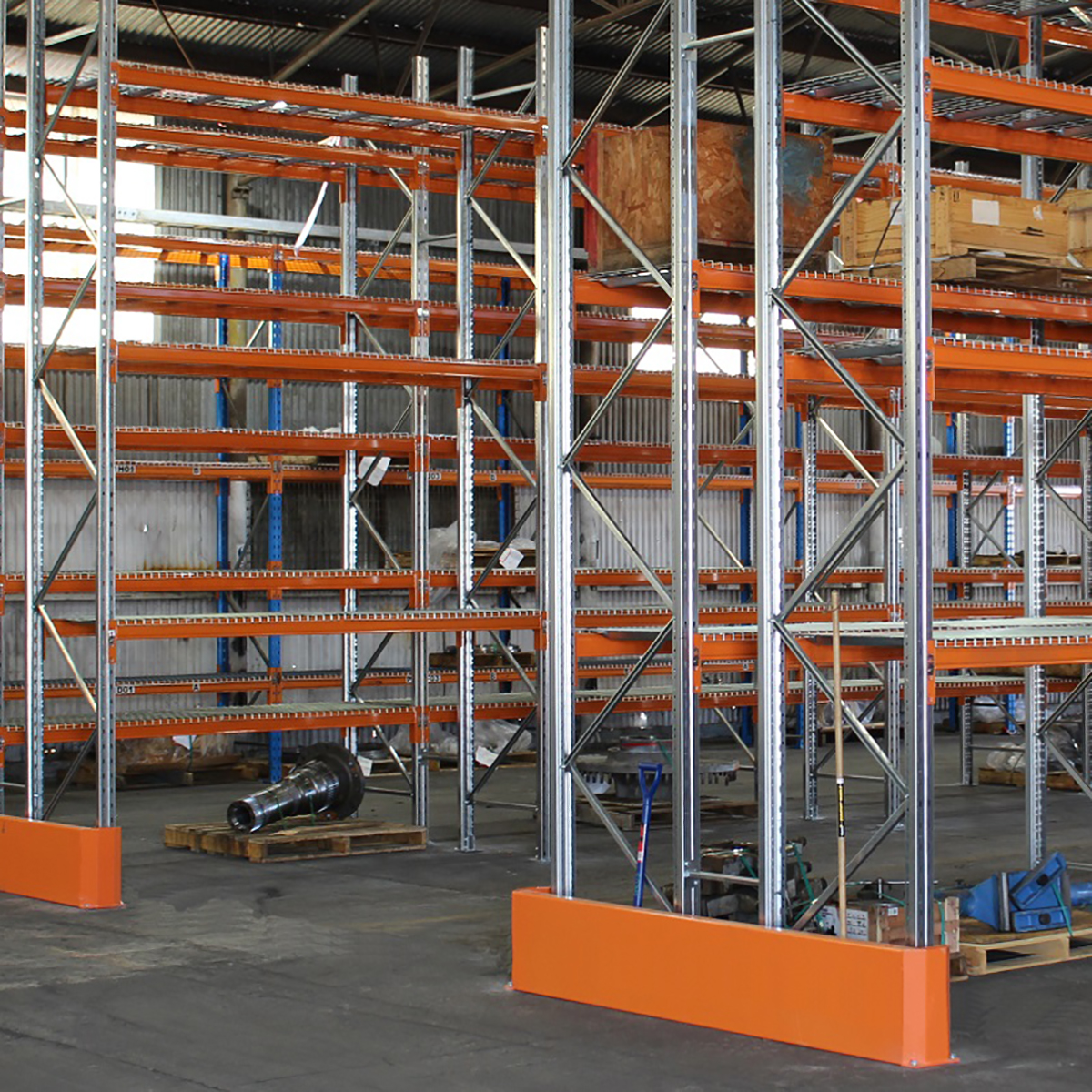

2360mmL compatible with 838mm frame back-to-back with a 430mm row spacer
2530mmL compatible with 838mm frame back-to-back with a 610mm row spacer
Finish:
Powder coated orange (RH0291, RH0292, RH0290, RH0288)

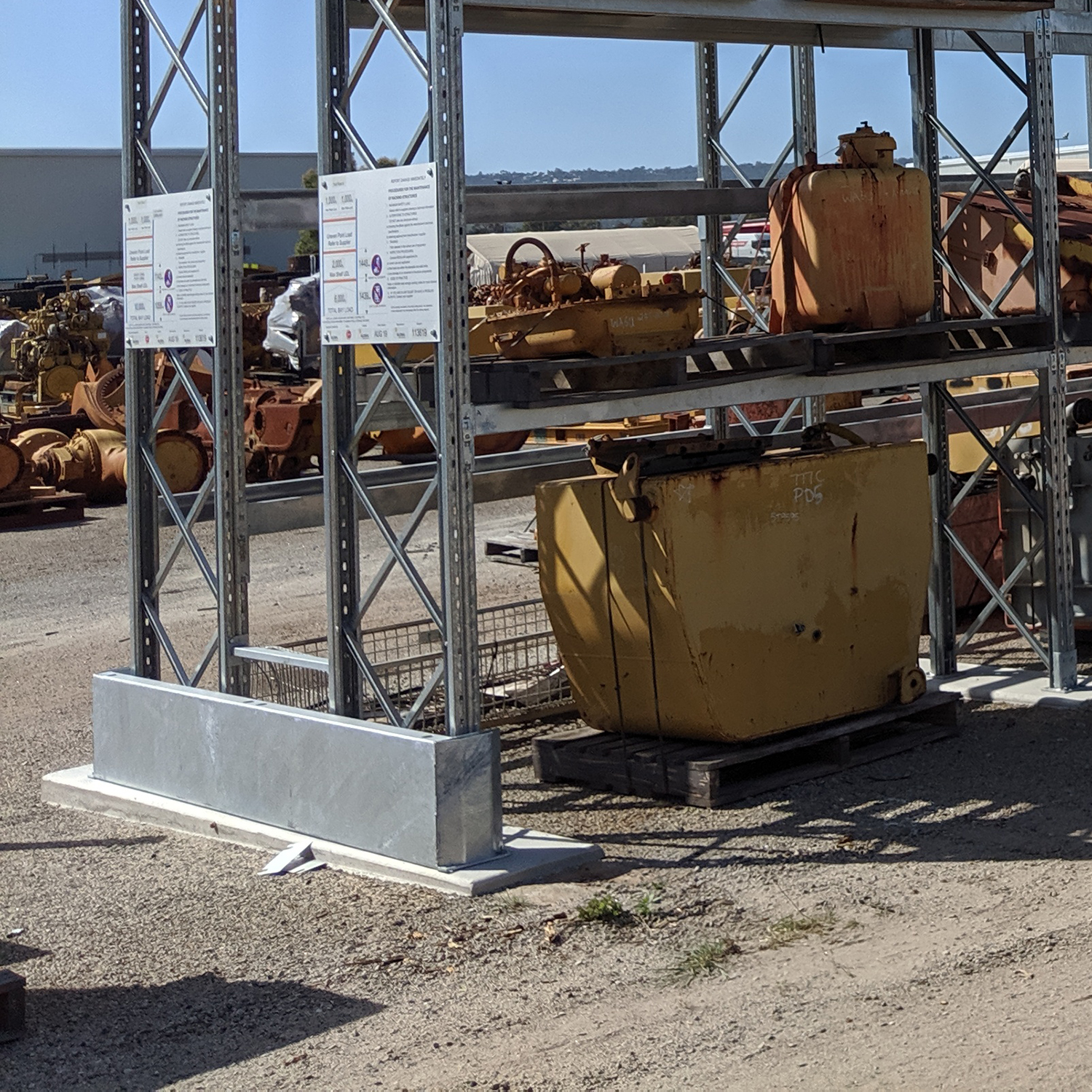

Hot-dipped Galvanised (RGGH260, RGGH262, RGGH265)
Anchor Requirements:
M14 screw or M16 stud anchors are required.
M10 screw or M12 stud are NOT sufficient
Anchor Points:
1090mmL & 1470mmL have 6 anchor points
2360mmL & 2530mmL have 8 anchor points
Compliance:
Meets the requirements outlined in AS4084.1:2023, which mandates upright protectors/guards for all frames at aisle and gangway intersections
Shipping & Returns
Do you need freight? To get a quote online, simply add your item/s to the cart and enter your delivery location and preferences to receive a price. Delivery time frames will vary depending on the item/s and destination.
Returns including faulty or damaged goods
Please note that change of mind returns will only be considered within 30 days from date of purchase and Global Industrial will not be responsible for any expenses related to the return freight.
You should always check your goods as soon as they are delivered to you to ensure they are what you ordered and they are not damaged or faulty. In this situation, please contact us straight away with photos or further information and will endeavor to rectify the issue right away.
Click & Collect
Easily collect from one of our warehouses located in Melbourne, Sydney, Brisbane or Perth. Pickup is available Monday to Friday 8:00am to 4:00pm.
Home & Business Deliveries
With a nationwide network of multiple carriers, we’re sure to find an affordable solution to freight anywhere around Australia.
Freight Depot Pickup
Collection from a freight depot is an affordable alternative to home deliveries for heavy and bulky items.
Additional Information
Installation of all rack protection must be 60mm minimum clearance from the column. This is to ensure that it is compliant to AS4084.1:2023
|
Apex Rack Protection Please note: M14 screw or M16 stud anchors are the minimum requirement for anchor type |
||||
| Code | Description | No. of anchor points | Minimum anchors QTY required | Minimum anchor embedment depth |
| RH0291 | 1075x225x400mm Powder coated |
6 | 4 | 65mm |
| RH0292 | 1450x225x400mm Powder coated |
6 | 4 | 65mm |
| RH0290 | 2340x225x400mm Powder coated |
8 | 6 | 65mm |
| RH0288 | 2510x225x400mm Powder coated |
8 | 6 | 65mm |
| RGGH260 | 1075x225x400mm HDG |
6 | 4 | 65mm |
| RGGH262 | 1450x225x400mm HDG |
6 | 4 | 65mm |
| RGGH265 | 2340x225x400mm HDG |
8 | 6 | 65mm |
Also known as a Rack End Protector (REP) these barriers are fitted to the ends of a pallet racking aisle. They are designed to protect the entire depth of the frame from low accidental impacts by forklifts. This is especially important in busy warehouses where forklifts are frequently turning in and out of aisles.
