Coil/Drum Support 838mm
Product Details
Designed for 838mm pallet racking frames, this coil and drum support system provides a secure and stable base for storing steel coils, drums, and cable reels. With adjustable support spacing and heavy-duty construction, it’s ideal for safe storage of heavy cylindrical loads in warehouse racking.
Product Code:
RH-KIT60
Frame Depth:
838mm
Adjustable Pitch:
200-500mm in 50mm increments
Construction:
75x75x5mm front to back angle
45x80x4mm punched retaining angle
Includes 4x M10x30mm nut and bolt sets
Load Contact Points:
Cable reels must have 2 points of contact
Steel coils/drums must make full contact along the base
Application:
Ideal for safely storing and supporting steel coils, drums, or cable reels in pallet racking bays.
Important Notes:
– All loadings must be checked against the beam’s centre-loading capacity
– Load must be evenly distributed across contact points
– Coil/reel must be centered within frame for safe use
– Not suitable for coil widths exceeding 838mm frame depth
Shipping & Returns
Do you need freight? To get a quote online, simply add your item/s to the cart and enter your delivery location and preferences to receive a price. Delivery time frames will vary depending on the item/s and destination.
Returns including faulty or damaged goods
Please note that change of mind returns will only be considered within 30 days from date of purchase and Global Industrial will not be responsible for any expenses related to the return freight.
You should always check your goods as soon as they are delivered to you to ensure they are what you ordered and they are not damaged or faulty. In this situation, please contact us straight away with photos or further information and will endeavor to rectify the issue right away.
Click & Collect
Easily collect from one of our warehouses located in Melbourne, Sydney, Brisbane or Perth. Pickup is available Monday to Friday 8:00am to 4:00pm.
Home & Business Deliveries
With a nationwide network of multiple carriers, we’re sure to find an affordable solution to freight anywhere around Australia.
Freight Depot Pickup
Collection from a freight depot is an affordable alternative to home deliveries for heavy and bulky items.

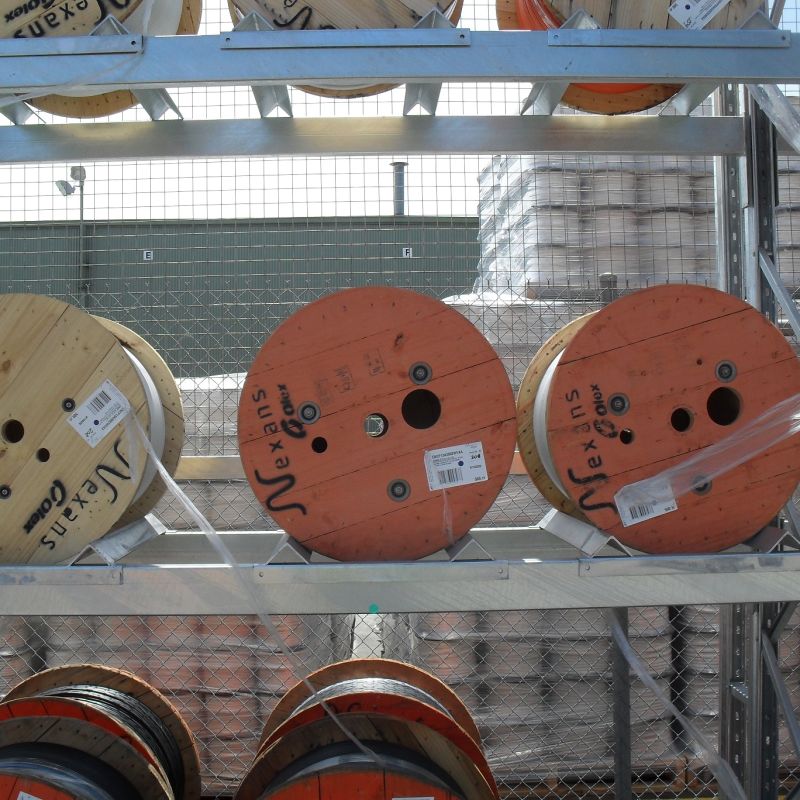

These supports are specifically designed to safely store cylindrical objects such as industrial drums steel coils or large cable reels in a flat horizontal position on your racking. By cradling the drum the support prevents it from rolling or shifting on the beams ensuring the load remains stable and secure during storage and retrieval.
