Light Duty Rivet Shelving
Product Details
Heights:
1829mm, 2134mm, 2438mm
Beam Lengths:
910mm, 1210mm, 1510mm, 1810mm, 2110mm, 2410mm
Beam Depths:
430mm, 570mm
Maximum Bay Capacity:
750kg UDL/bay
Max Beam Capacities:
910mm z-beam = Max 250kg UDL
1210mm z-beam = Max 250kg UDL
1510mm z-beam = Max 220kg UDL
1810mm z-beam = Max 200kg UDL
2110mm z-beam = Max 170kg UDL
2410mm z-beam = Max 150kg UDL
Shelf Materials:

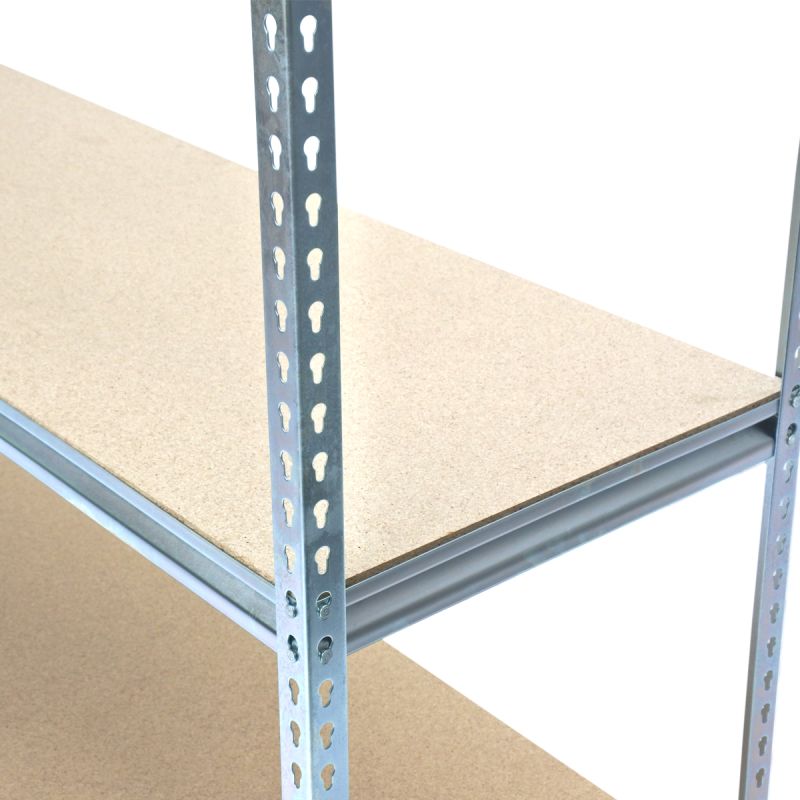

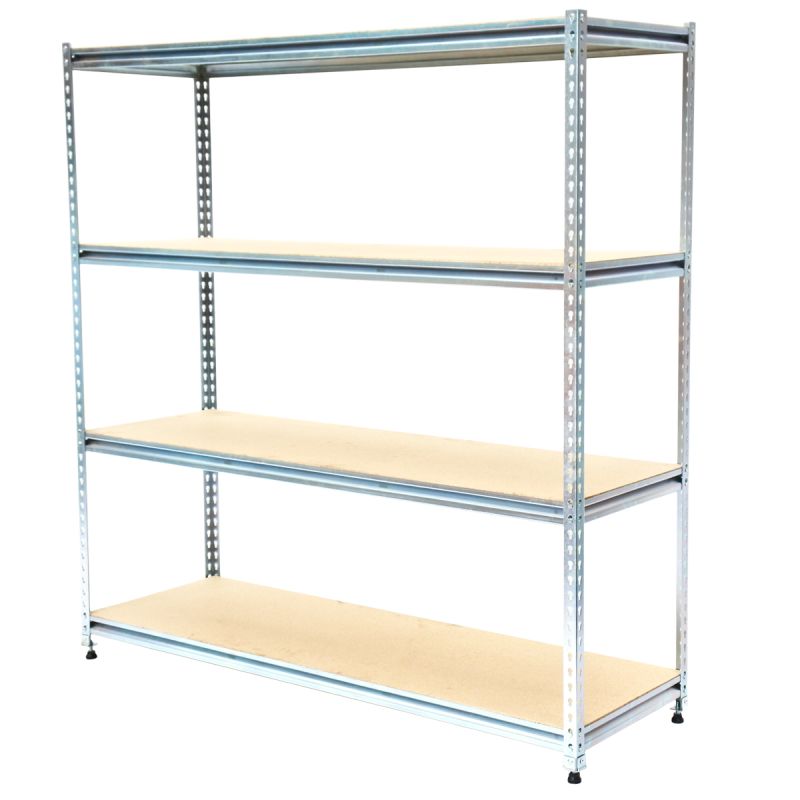

18mm particle board

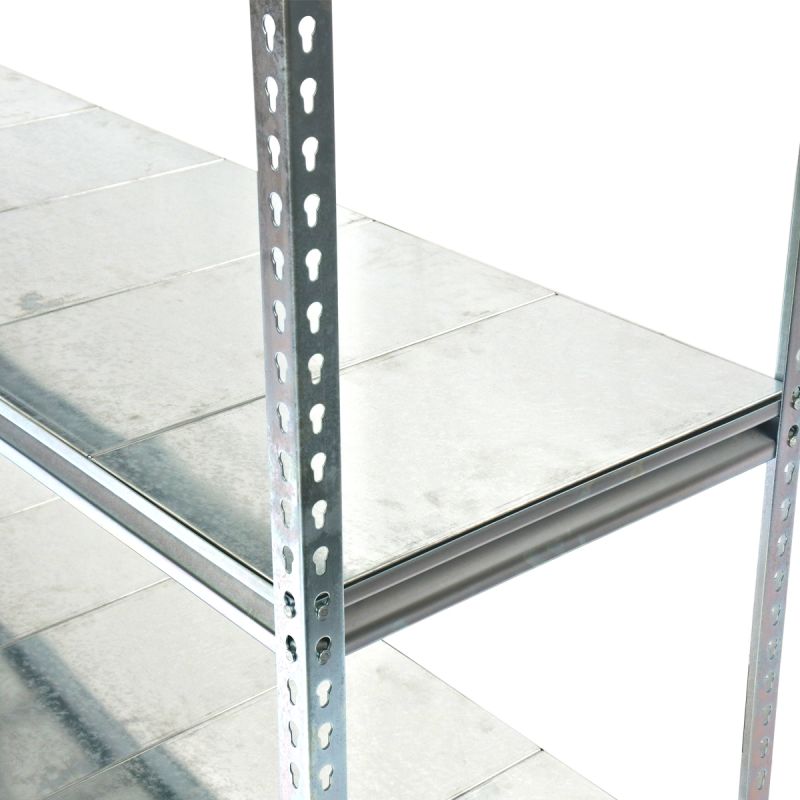

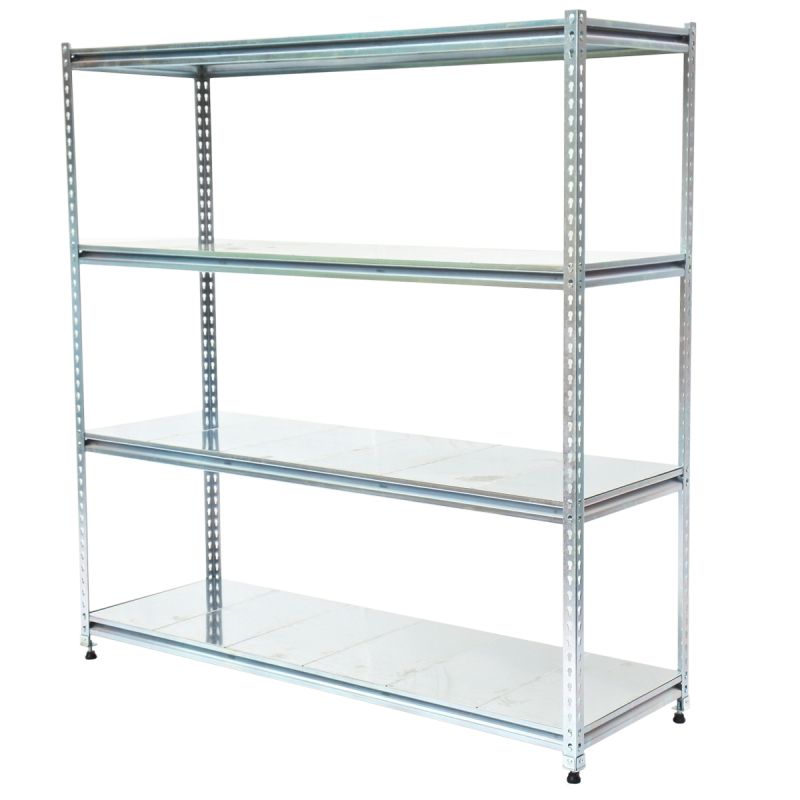

Galvanised panels

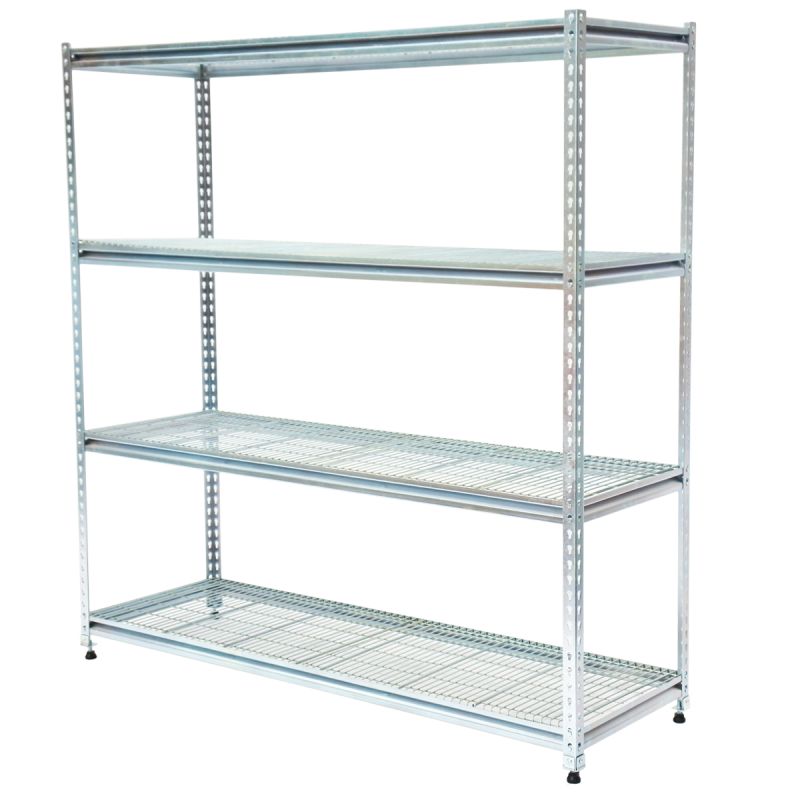

Mesh decks
Surface Treatment:
Electro-galvanised (Zinc plated)
Cleaning:
Use only neutral pH cleaners (e.g., soapy water)
Caution: Avoid contact with acidic foods to prevent discoloration
Engineering Certification:
Load capacities reviewed and certified – Last completed 18 April 2023
Shipping & Returns
Do you need freight? To get a quote online, simply add your item/s to the cart and enter your delivery location and preferences to receive a price. Delivery time frames will vary depending on the item/s and destination.
Returns including faulty or damaged goods
Please note that change of mind returns will only be considered within 30 days from date of purchase and Global Industrial will not be responsible for any expenses related to the return freight.
You should always check your goods as soon as they are delivered to you to ensure they are what you ordered and they are not damaged or faulty. In this situation, please contact us straight away with photos or further information and will endeavor to rectify the issue right away.
Click & Collect
Easily collect from one of our warehouses located in Melbourne, Sydney, Brisbane or Perth. Pickup is available Monday to Friday 8:00am to 4:00pm.
Home & Business Deliveries
With a nationwide network of multiple carriers, we’re sure to find an affordable solution to freight anywhere around Australia.
Freight Depot Pickup
Collection from a freight depot is an affordable alternative to home deliveries for heavy and bulky items.
Additional Information

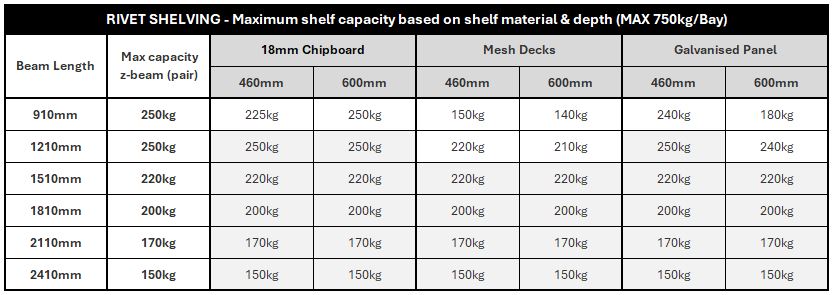

Load Capacities
Each bay has a maximum load capacity of 750kg UDL.
Shelf weight capacities vary by beam length, shelf depth, and material, as shown in the tables below.
18mm PARTICLE BOARD
FTB support per level |
430mmD | 570mmD | |
910mmL |
0 |
225kg | 250kg |
1210mmL | 1 | 250kg | 250kg |
1510mmL | 1 | 220kg | 220kg |
1810mmL | 2 | 200kg | 200kg |
2110mmL | 3 | 170kg | 170kg |
2410mmL | 3 | 150kg | 150kg |
MESH DECKS
FTB support per level |
430mmD | 570mmD | |
910mmL | 0 | 150kg | 140kg |
1210mmL | 1 | 220kg | 210kg |
1510mmL | 1 | 220kg | 220kg |
1810mmL | 2 | 200kg | 200kg |
2110mmL | 3 | 170kg | 170kg |
2410mmL | 3 | 150kg | 150kg |
GALVANISED PANELS
FTB support per level |
430mmD | 570mmD | |
910mmL | 0 | 240kg | 180kg |
1210mmL | 1 | 250kg | 240kg |
1510mmL | 1 | 220kg | 220kg |
1810mmL | 2 | 200kg | 200kg |
2110mmL | 3 | 170kg | 170kg |
2410mmL | 3 | 150kg | 150kg |
