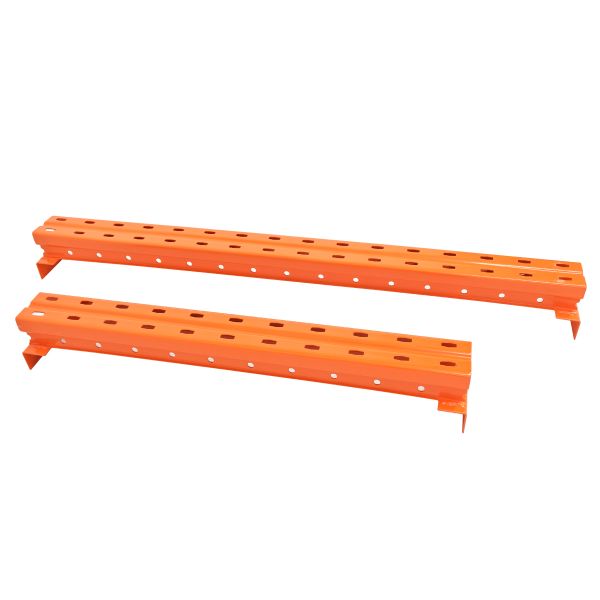

Pallet Support Bars
Product Details
Ensure safe and reliable pallet storage with our heavy-duty pallet support bars, designed to reinforce racking systems and prevent pallet deflection under load.
Purpose:
Designed to provide additional support for non-standard pallet sizes.
Models:
838mm support (RH0355)
1219mm support (RH0356)
Internal Length:
838mm support = 732mm
1219mm support = 1113mm
Maximum Load Capacity:
838mm support = 750kg UDL
1219mm support = 650kg UDL
Colour:
Powder-coated orange
Important Notes:
These support bars are not designed to increase the maximum capacity of your racking but to assist in safe pallet placement and weight distribution.
Always check your racking beam specifications to confirm compatibility and ensure safe loading practices.
Shipping & Returns
Do you need freight? To get a quote online, simply add your item/s to the cart and enter your delivery location and preferences to receive a price. Delivery time frames will vary depending on the item/s and destination.
Returns including faulty or damaged goods
Please note that change of mind returns will only be considered within 30 days from date of purchase and Global Industrial will not be responsible for any expenses related to the return freight.
You should always check your goods as soon as they are delivered to you to ensure they are what you ordered and they are not damaged or faulty. In this situation, please contact us straight away with photos or further information and will endeavor to rectify the issue right away.
Click & Collect
Easily collect from one of our warehouses located in Melbourne, Sydney, Brisbane or Perth. Pickup is available Monday to Friday 8:00am to 4:00pm.
Home & Business Deliveries
With a nationwide network of multiple carriers, we’re sure to find an affordable solution to freight anywhere around Australia.
Freight Depot Pickup
Collection from a freight depot is an affordable alternative to home deliveries for heavy and bulky items.
Pallet support bars serve two critical functions:
Non-Standard Pallets: They allow you to safely store custom, undersized, or international pallets (like Euro pallets) that are too small to safely span the distance between the front and back load beams.
Weak Pallet Reinforcement: They prevent weak or heavily loaded plastic and wooden pallets from sagging or deflecting under stress.
