Pallet Rack Footplate
Product Details
Models:
RH-KIT42 – Standard Footplate
Fitted to internally of post
Indoor use only
4mm thick base
1x M10x65mm nut & bolt included to attach to post
RH-KIT53 – Workbench Footplate
Compatible with 100kg M12 single thread castor wheels
4mm thick base
2x M10x25mm nut & bolt included to attach to post

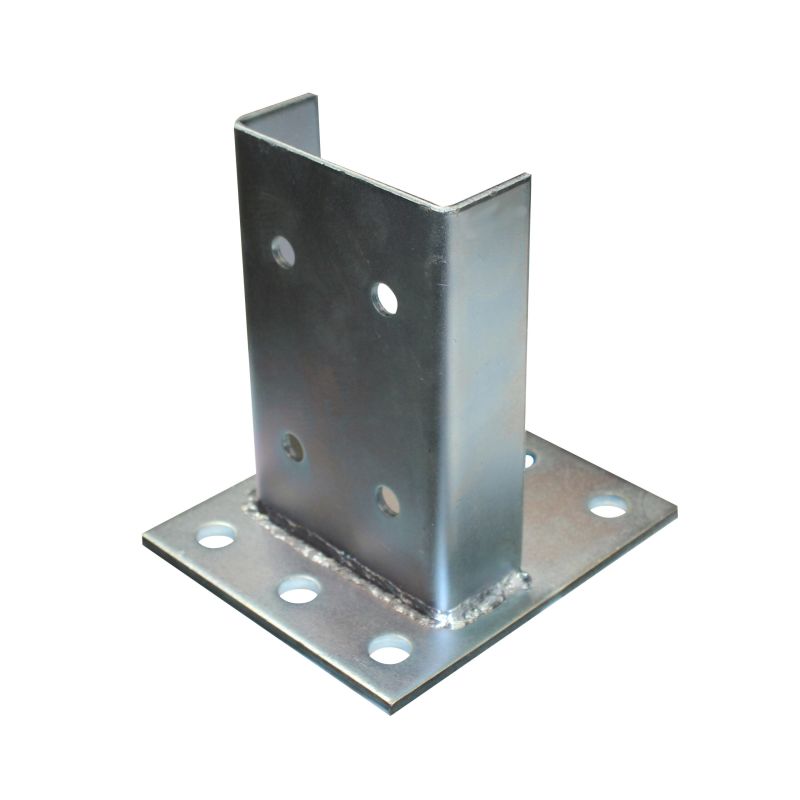

RH-KIT46 – Heavy-Duty 90mm Footplate
Wraps around outside of post
Indoor use only
6mm thick base
4x M10x25mm nut & bolt included to attach to post

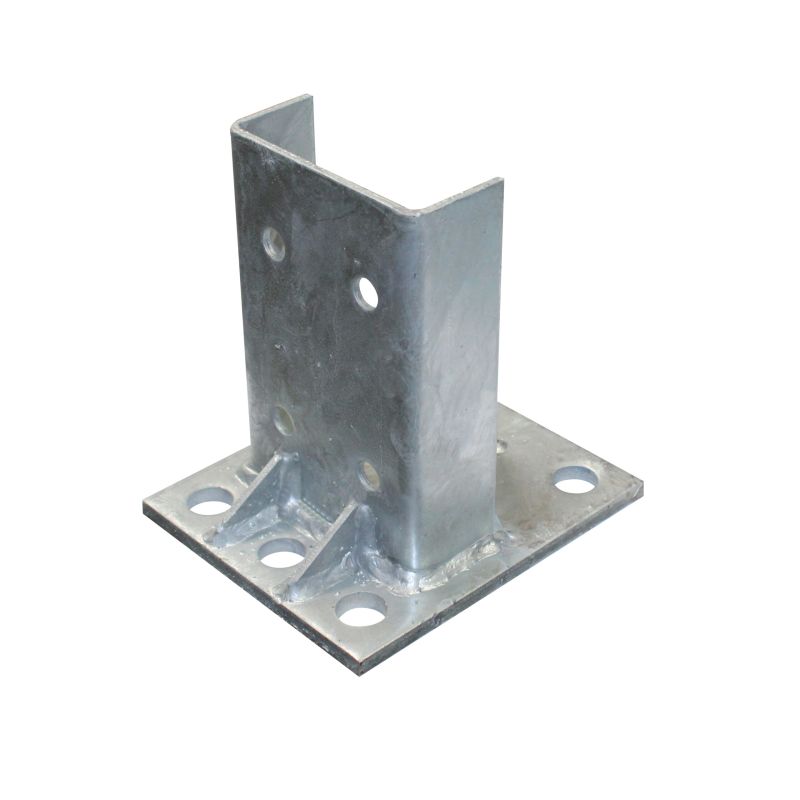

RH-KIT48 – Extra Heavy-Duty 90mm Footplate
Wraps around outside of post
Mostly Outdoor Use, can be used indoors if required
Vertical gusset at rear for attaching X-brace
8mm thick base
4x M10x25mm nut & bolt included to attach to post
RH-KIT52 – Heavy-Duty Castor Footplate
Designed for mounting the 300kg castor wheels
6mm thick bases
2x M10x65mm nut & bolt included to attach to post
Shipping & Returns
Do you need freight? To get a quote online, simply add your item/s to the cart and enter your delivery location and preferences to receive a price. Delivery time frames will vary depending on the item/s and destination.
Returns including faulty or damaged goods
Please note that change of mind returns will only be considered within 30 days from date of purchase and Global Industrial will not be responsible for any expenses related to the return freight.
You should always check your goods as soon as they are delivered to you to ensure they are what you ordered and they are not damaged or faulty. In this situation, please contact us straight away with photos or further information and will endeavor to rectify the issue right away.
Click & Collect
Easily collect from one of our warehouses located in Melbourne, Sydney, Brisbane or Perth. Pickup is available Monday to Friday 8:00am to 4:00pm.
Home & Business Deliveries
With a nationwide network of multiple carriers, we’re sure to find an affordable solution to freight anywhere around Australia.
Freight Depot Pickup
Collection from a freight depot is an affordable alternative to home deliveries for heavy and bulky items.
Additional Information
Footplates are also commonly referred to as base plates.
There are 4 different footplates that Global has to offer:
Standard footplate (Zinc)
- Global’s standard pallet rack footplate has been designed to suit a Global/Apex pallet racking post up to 4877mm high.
- They will fit post profiles of 90mm.
- To level these footplates, the universal 1.5mm thick shim plates will suit.
- Complete with 1x M10x65mm nut & bolt to attach footplate to post
Workbench (Zinc)
- Designed to suit our Global pallet racking workbenches.
- These footplates allow the user to attach the M12 single thread castor wheel, making the unit mobile.
- Complete with 2x M10x25mm nut & bolt to attach footplate to post.
Heavy Duty Castor Footplate (Zinc)
- Designed to suit our Apex pallet racking workbenches which will be used with the heavy duty castor wheels.
- Complete with 2x M10x65mm nut & bolt to attach footplate to post.
Heavy duty (Zinc)
- Designed for indoor applications only. The 90mm heavy duty footplate must be used for Global racking that is 6096mm or higher as a minimum.
- The universal 1.5mm thick shim plates suit these footplates.
- Complete with 4x M10x25mm nut & bolt to attach footplate to post.
Extra heavy duty (HDG)
- Mostly used for external applications where a heavier bay capacity or a high wind loading is required.
- The plate is 8mm thick, compared to the heavy duty foot plate which is only 6mm thick.
- The universal 1.5mm thick shim plates suit these footplates.
- Complete with 4x M10x25mm nut & bolt to attach footplate to post
A pallet racking footplate, also known as a base plate, is used to connect the upright frame of a pallet racking system to the concrete floor.
Footplates help distribute the applied load from the racking system into the slab while also providing a secure mounting point for anchor bolts. They are an essential structural component in pallet racking installations and contribute to the overall stability and safety of the system.
