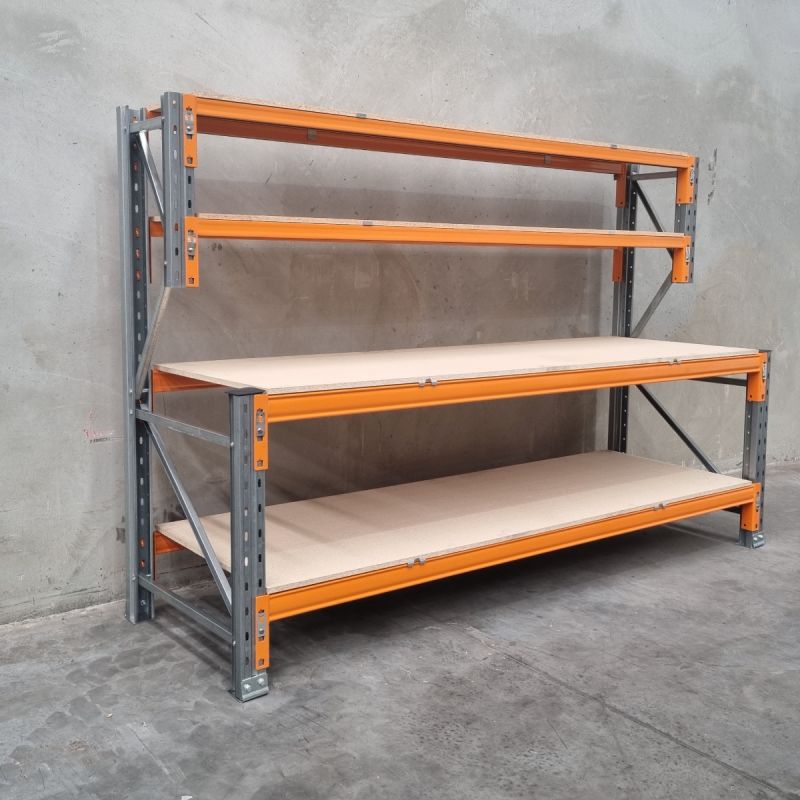

4-Tier APEX Heavy Duty Workbench
Product Details
Height:
914mm to the benchtop
1829mm overall height
Depth:
838mm benchtop and bottom shelf
415mm top shelves
Beam Sizes:
1372mmL (4tierWB-1372L)
2591mmL (4tierWB-2591L)
2743mmL (4tierWB-2743L)
Overall External Length:
1372mmL = 1555mmL
2591mmL = 2775mmL
2743mmL = 2925mmL
Shelf Insert:
All levels are complete with raw 18mm thick partical board which sits inside the beam step to make a flush finish.
Included Accessories:
4x 838mm deep support bars (2 per level)
8x Z clips
2x black post caps
Top Shelf Capacity:
Maximum 100kg UDL (50kg UDL per shelf)
Shelf Adjustability:
Shelves can be adjusted in 72.6mm increments
Material:
Steel frame and particle board shelves
Finish/Colour:
Frames – pre-galvanised
Beams – powder-coated orange
Board – 18mm particle board with no surface treatment
Assembly:
Supplied as flat-packed, however, the frames are pre-assembled for your convenience
Shipping & Returns
Do you need freight? To get a quote online, simply add your item/s to the cart and enter your delivery location and preferences to receive a price. Delivery time frames will vary depending on the item/s and destination.
Returns including faulty or damaged goods
Please note that change of mind returns will only be considered within 30 days from date of purchase and Global Industrial will not be responsible for any expenses related to the return freight.
You should always check your goods as soon as they are delivered to you to ensure they are what you ordered and they are not damaged or faulty. In this situation, please contact us straight away with photos or further information and will endeavor to rectify the issue right away.
Click & Collect
Easily collect from one of our warehouses located in Melbourne, Sydney, Brisbane or Perth. Pickup is available Monday to Friday 8:00am to 4:00pm.
Home & Business Deliveries
With a nationwide network of multiple carriers, we’re sure to find an affordable solution to freight anywhere around Australia.
Freight Depot Pickup
Collection from a freight depot is an affordable alternative to home deliveries for heavy and bulky items.
Additional Information
The 4 tier rack workbenches are sturdy and easy to assemble.
You can rest assured that this product will make a great worktop for any workshop needs.
We recommend using FTB board supports for the 838mm deep levels & bench top.
For extra efficiency, this product can be customised with:
- heavy duty castor wheels
- louvered panels, parts bins and hanging hook
The weight capacity of an APEX Heavy Duty Workbench depends on the configuration, including the frame structure and the high-density particle board work surface.
The APEX steel frame system is engineered to support over 1000kg, providing a strong structural base for industrial applications. The work surface capacity is determined by the span and dimensions of the bench top.
For the 4-tier configuration, the upper storage levels are designed for lighter-duty storage, with a maximum capacity of 100kg UDL per level (50kg UDL per shelf section).
Typical uniformly distributed load (UDL) capacities for standard work surface configurations are:
- 1372mm x 838mm: 344kg UDL
- 2591mm x 838mm: 400kg UDL
- 2743mm x 838mm: 365kg UDL
These ratings ensure safe load distribution across both the work surface and integrated storage levels when used in accordance with the designed configuration.
